public address amplifier with USB/SD card |
 |
| |
|
|
|
|
| |

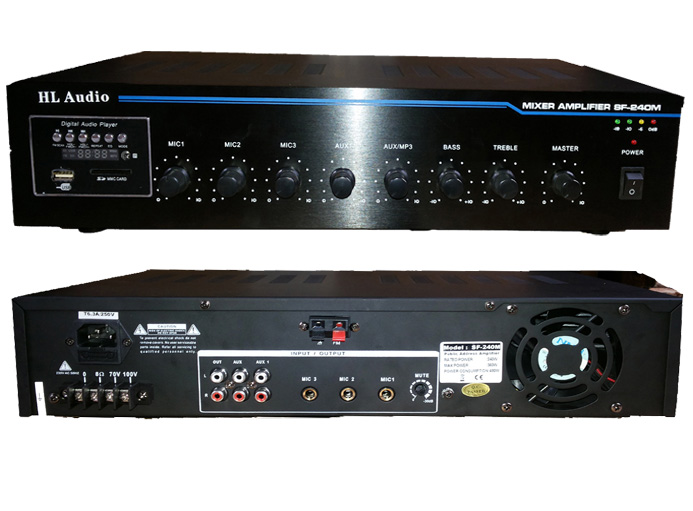

SF-60M/120M/240M/360M/480M
|
| | |
|
|
| |
|
|
MODEL:
|
SF-60M
|
SF-120M
|
SF-240M
|
SF-360M
|
SF-480M
|
|
Power consumption
|
120W
|
240W
|
480W
|
720W
|
960W
|
|
Output
|
60W
|
120W
|
240W
|
360W
|
480W
|
|
Max.output power
|
90W
|
180W
|
360W
|
540W
|
720W
|
|
|
|
|
|
|
|
|
Frequency response
|
100Hz-16kHz
|
|
|
|
|
|
Distortion(THD)
|
0.1%at 1000Hz,1/3 rated output power
|
|
|
|
Output
|
4-16ohm, 70V,100V
|
|
|
|
|
Aux Output
|
600mV 1V(0dBV)
|
|
|
|
|
Input
|
Mic 1,2,3: 600ohm, 6mV
|
|
|
|
|
|
Aux 1,2,3: 10000ohm,25omV
|
|
|
|
|
|
|
|
|
|
|
S/N ratio
|
Mic 1,2,3:≥66dB
|
|
|
|
|
|
Aux 1,2: ≥70dB
|
|
|
|
|
Tone control
|
Bass:±10dB at 100Hz
|
|
|
|
|
|
Treble:±10dB at 10000Hz
|
|
|
|
|
|
|
|
|
|
|
|
Protection
|
AC Fuse,Dc Voltage,Overload and short circuit
|
|
|
Muting Function
|
Mic 1 overrides other input signals with 0-30dB
|
|
|
Packing size:
|
54.5*35*17.5
|
54.5*35*17.5
|
54.5*35*17.5
|
54.5*35*17.5
|
54*47.5*18.5
|
|
Net Weight
|
6kgs
|
8kgs
|
10kgs
|
12kgs
|
16.3kgs
|
|
|
| |
